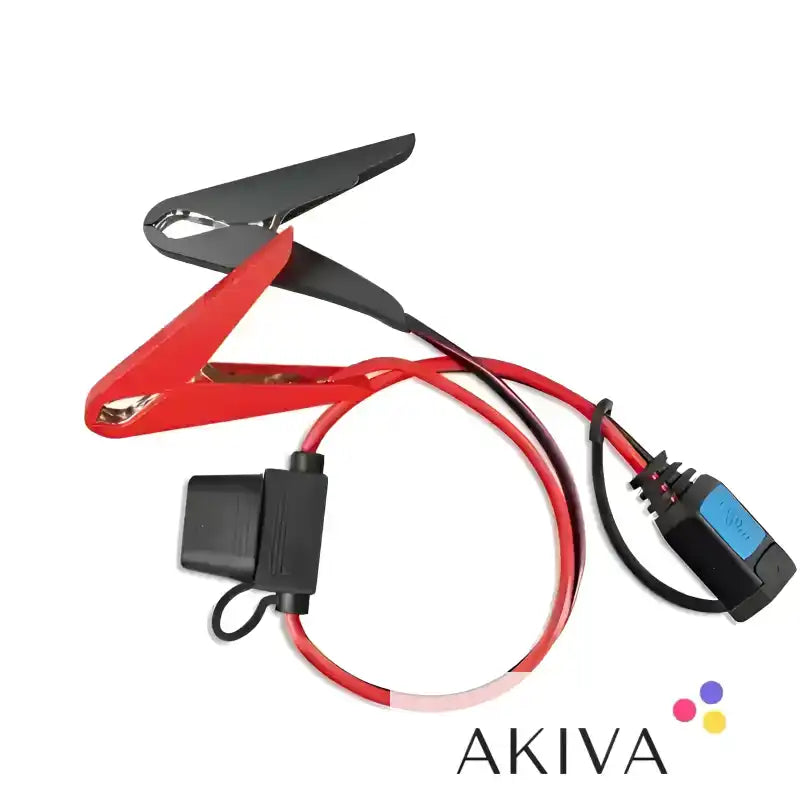

Victron Energy Battery Clamp Connector with 30A ATO Fuse – BPC900400014

Product Overview

The Victron Energy Battery Clamp Connector with 30A ATO Fuse (BPC900400014) is a genuine Victron accessory designed for compatible Blue Smart IP65 and Blue Power IP65 battery chargers. It provides a convenient way to connect a battery charger directly to battery terminals using positive and negative crocodile-style battery clamps.

Ideal for portable charging, workshop use and temporary battery connections, this accessory allows users to connect and disconnect their charger quickly without requiring permanent wiring or fixed battery connections.

An integrated 30A ATO blade fuse provides additional circuit protection, helping safeguard the charging connection against excessive current.

Convenient Battery Clamp Connections

The connector features clearly identifiable positive and negative battery clamps, allowing straightforward connection to compatible battery terminals. The clamp design provides a practical solution when charging different batteries or when a permanent eyelet connection is not required.

Its detachable DC connector allows the assembly to connect directly to compatible Victron chargers, making it easy to change between different battery connection accessories.

Integrated 30A Fuse Protection

The BPC900400014 incorporates an inline 30A ATO blade fuse to provide overcurrent protection for the charging circuit. The fuse is designed to help protect the cable and connection against excessive current conditions.

The connector is intended for use with compatible Blue Smart IP65 chargers and charging applications within the accessory's rated capacity. The maximum continuous current should not exceed 20A.

Applications and Usage

The Victron battery clamp connector is suitable for charging and maintaining batteries in cars, vans, motorcycles, boats, caravans, campervans and motorhomes. It is particularly useful for workshop environments, mobile charging applications and situations where batteries need to be connected temporarily.

Unlike permanent M6 or M8 eyelet connectors, the battery clamps can be attached directly to the battery terminals whenever charging is required.

Technical Specifications

The BPC900400014 is a detachable DC battery connection accessory featuring positive and negative battery clamps with an integrated 30A ATO blade fuse. It is designed for compatible Victron Blue Smart IP65 and Blue Power IP65 chargers.

The maximum continuous current rating is 20A. The connector uses Victron's interchangeable DC connection system, allowing it to be fitted to compatible charger models without modifying the original charger wiring.

Compatibility and Installation

This accessory is designed for compatible Victron Blue Smart IP65 and Blue Power IP65 chargers fitted with the interchangeable DC connector system.

Before connecting, ensure the charger is disconnected from the mains supply. Attach the positive clamp to the positive battery terminal and the negative clamp to the negative terminal. Check that the connections are secure and correctly positioned before reconnecting the charger to the mains.

Always observe the charger's maximum output current and the accessory's 20A continuous current rating.

Product Summary

The Victron Energy BPC900400014 Battery Clamp Connector provides a convenient and reliable way to connect compatible Victron battery chargers directly to battery terminals. Featuring positive and negative battery clamps and an integrated 30A ATO fuse, it is a useful accessory for portable battery charging, vehicle maintenance, marine applications and leisure battery systems.
