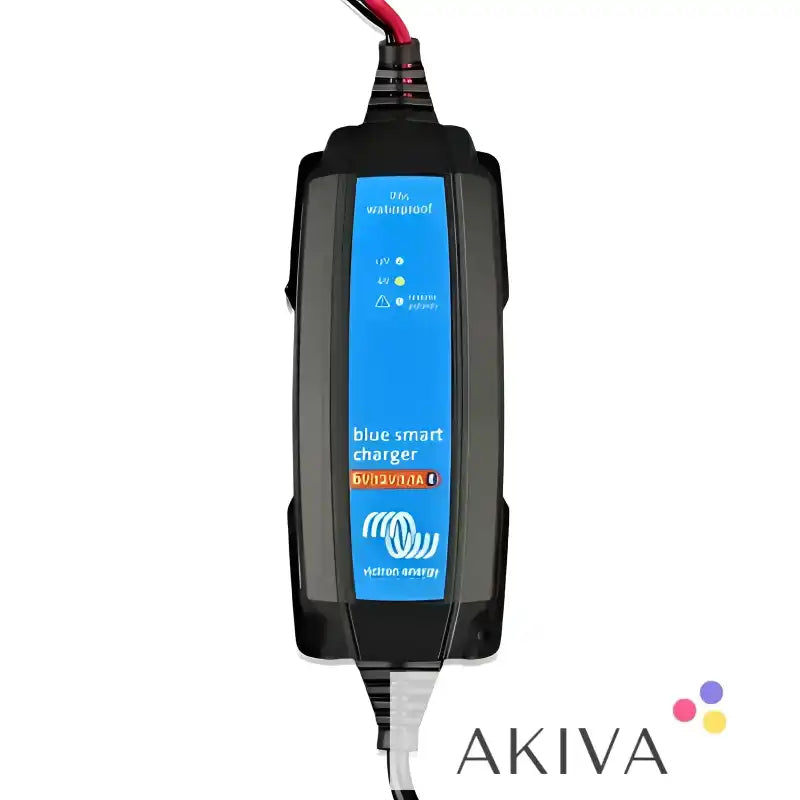

Victron Energy Blue Smart IP65 Charger 6V/12V-1.1 230V CEE 7/16 – BPC120134034R

Product Overview

The Victron Energy Blue Smart IP65 Charger 6V/12V-1.1 is a compact, intelligent battery charger designed for maintaining and charging compatible 6V and 12V batteries. Featuring built-in Bluetooth connectivity, an adaptive seven-stage charging algorithm and IP65 protection against dust and water splashes, it is ideal for automotive, motorcycle, marine, workshop and leisure applications.

With a maximum charging current of 1.1A, this charger is particularly suitable for smaller batteries, low-current charging and long-term battery maintenance. Its compact design and included battery connection accessories make it convenient for both occasional charging and ongoing maintenance.

This retail version, product code BPC120134034R, is supplied with a 230V European CEE 7/16 plug.

Intelligent Seven-Stage Charging

The Blue Smart IP65 Charger uses an adaptive seven-stage charging process designed to charge batteries efficiently while supporting long-term battery health. The charging process adjusts according to the battery's condition and charging requirements.

The charging stages manage the process from initial charging through absorption and maintenance, helping bring the battery to a suitable charge level without unnecessary overcharging. A reconditioning function is available for suitable lead-acid batteries where appropriate.

The charger supports compatible lead-acid battery types and lithium batteries when the correct charging programme is selected. Always confirm that the selected charging profile is suitable for the battery manufacturer's recommendations.

Bluetooth Connectivity and VictronConnect

Built-in Bluetooth allows the charger to connect to a compatible smartphone or tablet using the VictronConnect app. This provides convenient access to charging information and supported configuration settings without requiring a separate monitoring device.

Through the app, users can check charging status, review operating history and select supported settings for their battery type. This makes it easier to monitor battery maintenance and understand the charger's operation.

Suitable for 6V and 12V Batteries

The charger supports both 6V and 12V batteries, making it versatile for smaller battery systems. Its 1.1A maximum charging current is intended for batteries within the recommended capacity range and for maintenance applications where a low charging current is appropriate.

For normal charging, the recommended battery capacity depends on battery chemistry and the selected charging mode. For larger batteries, a higher-output charger may be more suitable.

IP65 Protection and Compact Design

The IP65-rated enclosure provides protection against dust ingress and water jets from any direction under the specified test conditions. This makes the charger suitable for many workshop, garage, vehicle and marine environments when installed and used according to the manufacturer's instructions.

The enclosure should not be submerged, and the charger must be positioned and connected in accordance with the manual. Its compact size makes it easy to store when not in use.

Safety and Protective Features

The Blue Smart IP65 Charger incorporates protective functions designed to help safeguard the charger and battery during normal operation. These include protection against reverse polarity, output short circuits and overheating.

Correct battery polarity, suitable connections and appropriate charging settings remain essential. The charger should only be used with compatible batteries and within the operating conditions specified by the manufacturer.

Applications

The Victron Energy Blue Smart IP65 Charger 6V/12V-1.1 is suitable for compatible batteries in cars, classic vehicles, motorcycles, small boats, leisure equipment and workshop applications. It can also be used for maintaining batteries during storage, provided the battery type and capacity are suitable for the selected charging mode.

Its Bluetooth monitoring, low charging current and weather-resistant enclosure make it a practical choice for users who need a compact charger for smaller batteries or ongoing battery maintenance.

Technical Specifications

Product name: Victron Energy Blue Smart IP65 Charger 6V/12V-1.1 230V CEE 7/16.

Product code: BPC120134034R.

Product type: Smart battery charger and maintainer.

Battery voltage: 6V or 12V.

Maximum charging current: 1.1A in normal mode.

Low-current mode: Approximately 0.5A maximum.

AC input voltage: 180–265V AC.

AC input frequency: 45–65Hz.

Maximum efficiency: Approximately 82%.

Standby power consumption: Less than 0.5W.

Charging algorithm: Adaptive seven-stage charging.

Battery compatibility: Compatible lead-acid and lithium batteries, subject to the selected charging programme.

Bluetooth: Built in.

Mobile application: VictronConnect.

Ingress protection: IP65.

Protective functions: Reverse polarity, output short circuit and over-temperature protection.

Operating temperature: -30°C to +50°C, with full rated output up to 30°C.

Dimensions: Approximately 38 × 64 × 153mm.

Weight: Approximately 0.4kg.

AC plug: CEE 7/16 European two-pin plug.

Included accessories: Battery connection cable with connectors and clamps/eyelet connection accessories, as supplied in the retail package.

Installation and Compatibility

Before connecting the charger, confirm whether the battery is 6V or 12V and select the appropriate charging programme. Check that the battery chemistry and capacity are suitable for the selected mode.

Connect the charger using the supplied accessories, observing the correct battery polarity. Use the charger in a suitable location with adequate ventilation and follow the manufacturer's instructions regarding connection, disconnection and operating conditions.

The supplied CEE 7/16 plug is the European version, so UK customers should check plug compatibility before purchasing. Do not use the charger on batteries or in applications outside the manufacturer's specifications.

Product Summary

The Victron Energy Blue Smart IP65 Charger 6V/12V-1.1 combines intelligent seven-stage charging, Bluetooth monitoring and IP65 protection in a compact battery charger. With support for compatible 6V and 12V batteries, it is well suited to smaller battery systems, vehicle and motorcycle batteries, marine use and long-term battery maintenance.
