Blue Sea Systems

Blue Sea Systems BSS Fuse Block MRBF 3Circ Common

Blue Sea Systems BSS Fuse Block MRBF 3Circ Common

Regular price £45.53 GBP
Regular price £62.80 GBP Sale price £45.53 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

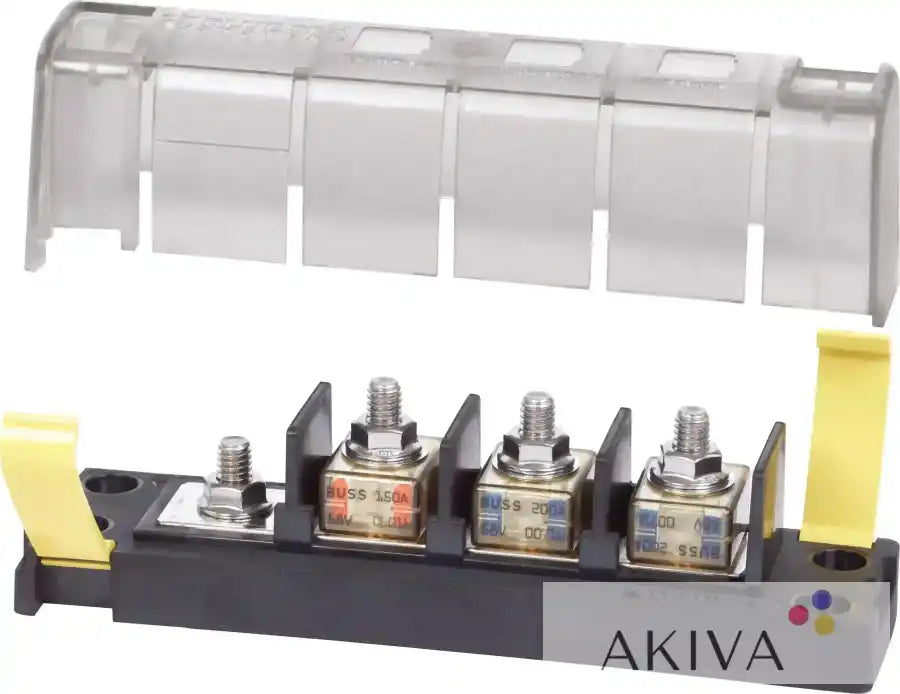

The Blue Sea Systems MRBF Surface Mount Fuse Block – Common Source (PN 5196) is designed to accommodate three MRBF fuses, providing consolidated high-amperage circuit protection from a single power source. This ignition-protected fuse block is ideal for applications such as inverters, windlasses, and bow thrusters. It features a clip-on insulating cover that satisfies ABYC/USCG insulation requirements and offers versatile wiring options, allowing all wires to exit from a single side. The fuse block is constructed with marine-grade stainless steel and UV-stabilized plastics, ensuring durability in harsh marine environments. It is suitable for use with fuses ranging from 30A to 300A and is rated for a maximum voltage of 58V DC. The terminal stud size is M8 (5/16"-18), and the maximum torque is 100 in-lb (11.3 Nm). This fuse block is an excellent choice for consolidating high-amperage circuit protection in tight spaces, meeting stringent safety standards.

SKU:5196
